JST SH GH ZH-13P PH XH MOLEX Dupont SUR 0.8 1.0 1.25 1.5 2.0 mm Pitch 1Pin 2P 3P 4P 5 6 7 8 Wire Housing Headers Wire Housings

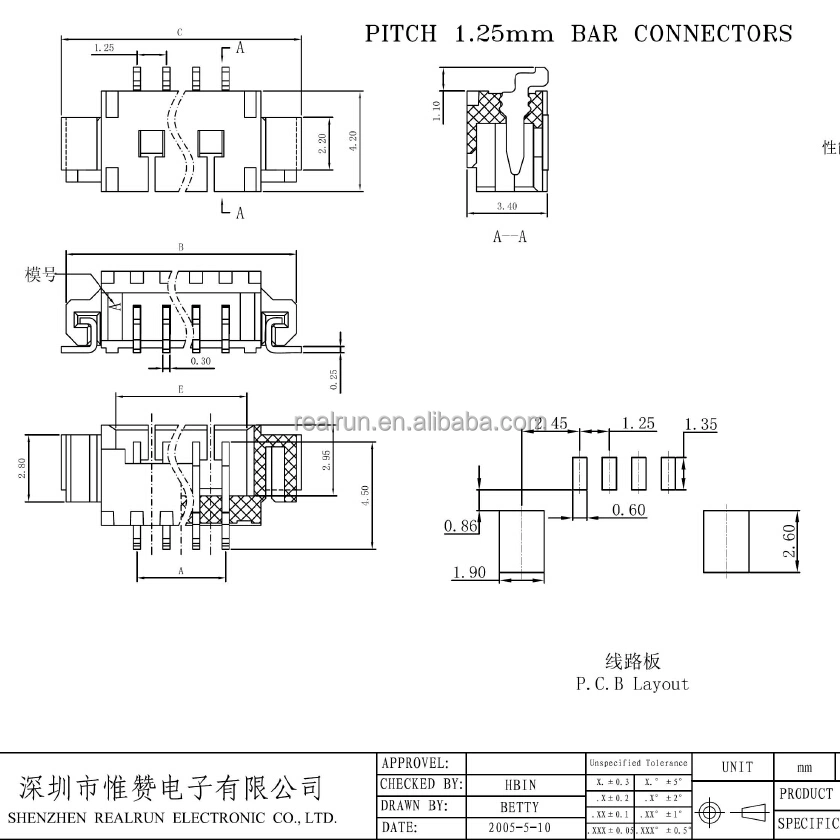

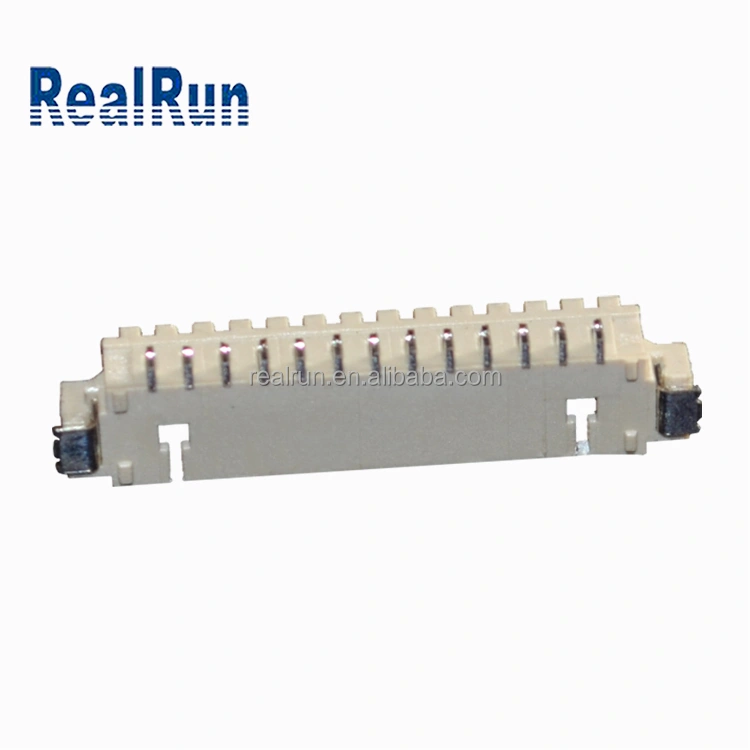

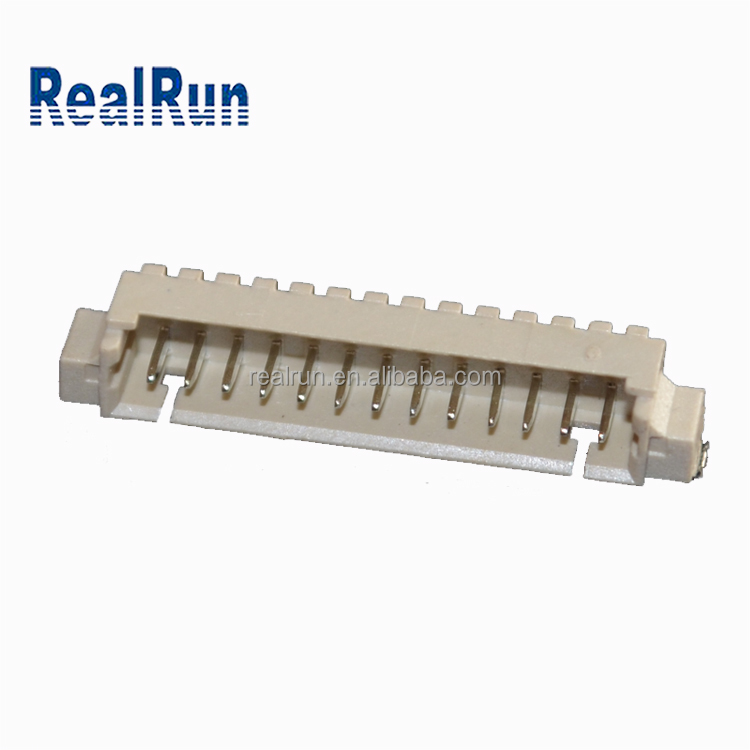

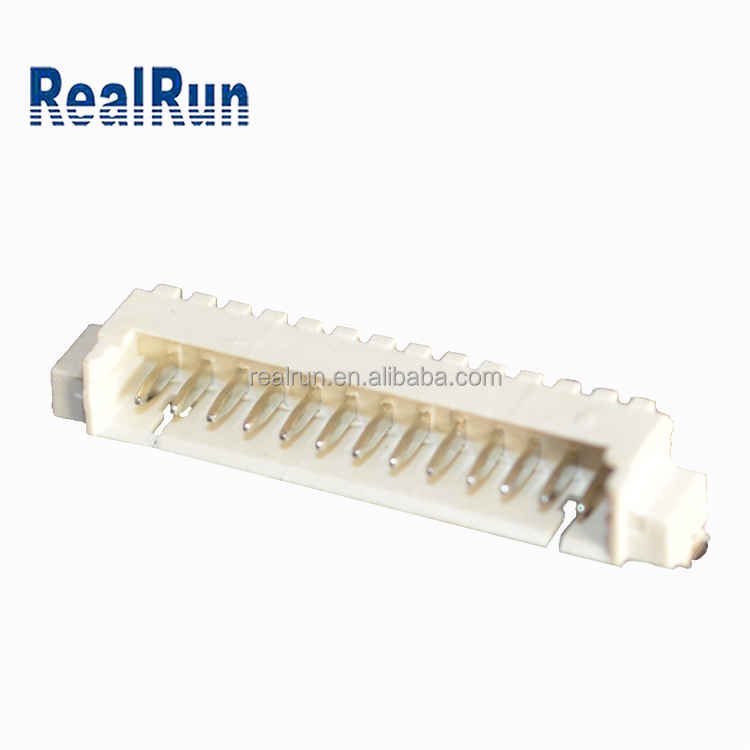

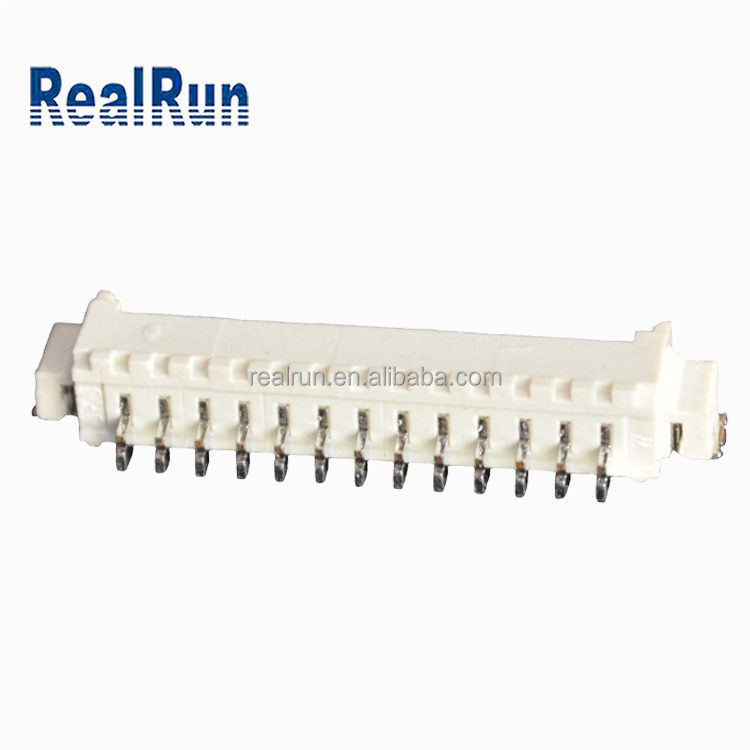

- Model Number:ZH1.25-13PBW
- Type:HEADER
- Place of Origin:Guangdong, China
- Brand:RealRun
- Packaging:Tray/reel/tube Packing
- Description:Round pin header
- Mfg. Date Code:AC/DC
- Pitch:1.25mm
- Insulator Material:PA66/PA46, G.F Thermoplastic Ployester, Black (UL94V-0)
- Current Rating:0.75A
- Contact:Brass,Machined CuZn38Pb2
- Plating(Outer Sleeve):Tin or gold plated
- Insulation Resistance:1000MΩ Min
- Contact resistance:20mΩ Max
- Soldering temperature:20℃, 10s max
- Color:White
- Connector type:Wafer
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
| Name | Round Pin Header connector |
| Pitch | 0.8 1.0 1.25 1.5 2.0 2.54 3.0 3.96 4.2 5.08mm |
| Type | DIP/Angle/SMT Double/Single Row |
| Insulator Color | White/Nature Color |
| Gender | Male |
| Insulator Flammability | G.F thermoplastic polyester, Black(UL94V-0) |
| Number of pins | 1Pin~12Pin |
| Current Rating | 0.75A |
| Pitch | 1.5mm |
| Operation Temperature | Gold plated:-55℃ to+125℃ Tin plated:-40℃ to+105℃ |
| Insulation Resistance(min) | 1000M ohm |
| Contact | Brass,Machined CuZn38Pb2 |
| Contact Plating | Tin plated:2μm/80μ"Ni,5μm/200μ“Sn, Gold plated:2μ"m/80μ"Nickel,full gold |
| Contact resistance | 20mΩ Max |
| Withstanding Voltage | 500 AC/DC |
| Soldering temperature | 230℃,10s max |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. RealRun always regards quality as corporate life, adheres to the business philosophy of the quality to the market, the management to benefit and the leading innovation and brand strategy. Since the company established,we have payed attention to the management specification and high quality requirements, We have passed ISO9001 and IATF16949 quality management system certification. We also got many patents in recent yesrs.

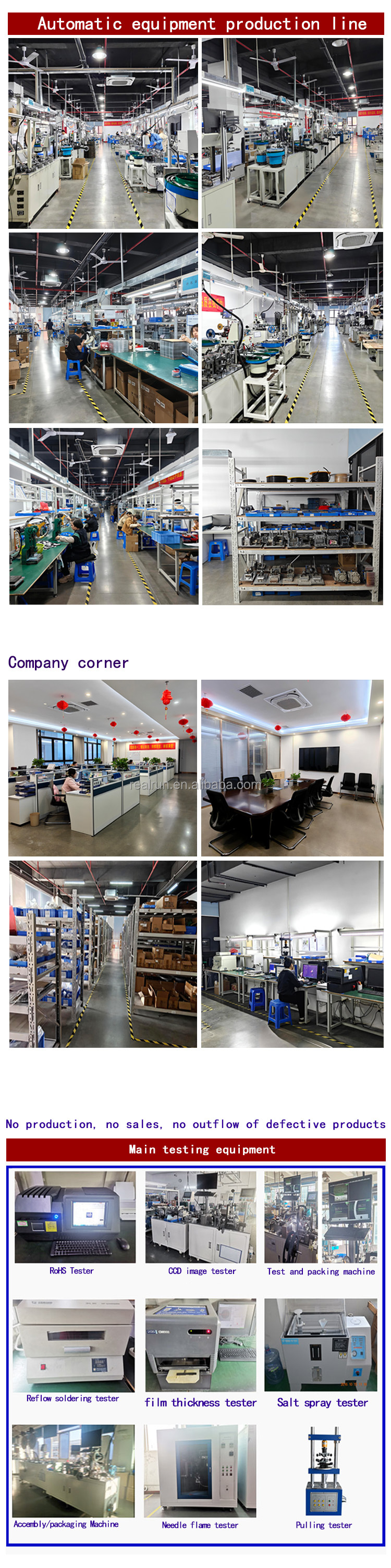

All products meet RoHS and Reach requirements. And we have the ability of independent research and development, design products and jigs, There are all kinds of precision tools and processing equipment, and we have an independent laboratory, which can complete the test of electrical, mechanical and environmental performance. The instruments include film thickness tester, high and low temperature constant temperature and humidity tester, CCD image tester, Pulling tester, Image measuring instrument, tensile strength tester, infrared reflow soldering tester, salt spray tester, high-temperature baking tester Box, hot wire tester, micro resistance tester, needle flame tester, ball pressure tester and steam aging tester, etc., so that we can provide reliable guarantee for product quality. We always adhere to the"market-oriented, customer satisfaction"as the tenet, and constantly strive to be outstanding enterprise.

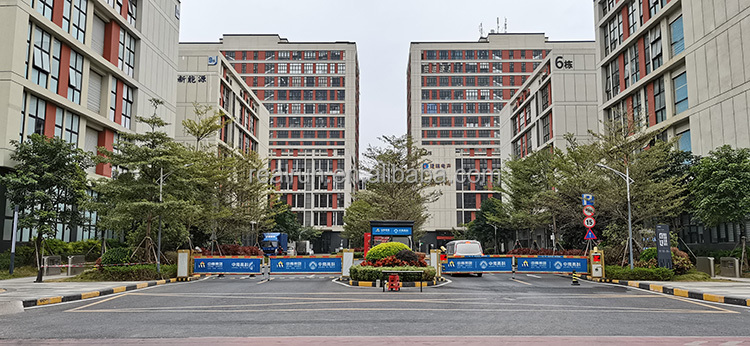

The company business address is in Shenzhen Guangming new district, Factory address is located in Zhongkai district, Huizhou City, with a floorage of 3000sq.m. main products: Pin header, Female header, Box header, Ejector header, IDC cable series, Terminal cable, IC socket, Single and double row round hole socket and pin header, FFC/FPC connector and SD socket, FFC cable, RJ45&RJ11, Edge card connector, high current connctor etc.
The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domestic market is main in south China, radiation throughout the country, the international market is main in Hong Kong, Taiwan and the global clients.
Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity,etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.
1.Can I get some samples?
A: Yes,some samples are free.
2. why we choose RealRun for our supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
3. If happend with the defective products when receiving the goods, how to deal with?
A: 1.Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all
the responsibility.
2.First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3.Second: discuss the solutions.
4.Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
4. which payment can be accepted:
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 70% T/T advance before shipping.
5.What shipping methods are supported?
A: By Sea, Air, Land, or use your express account. like FedEx, DHL, UPS etc...
