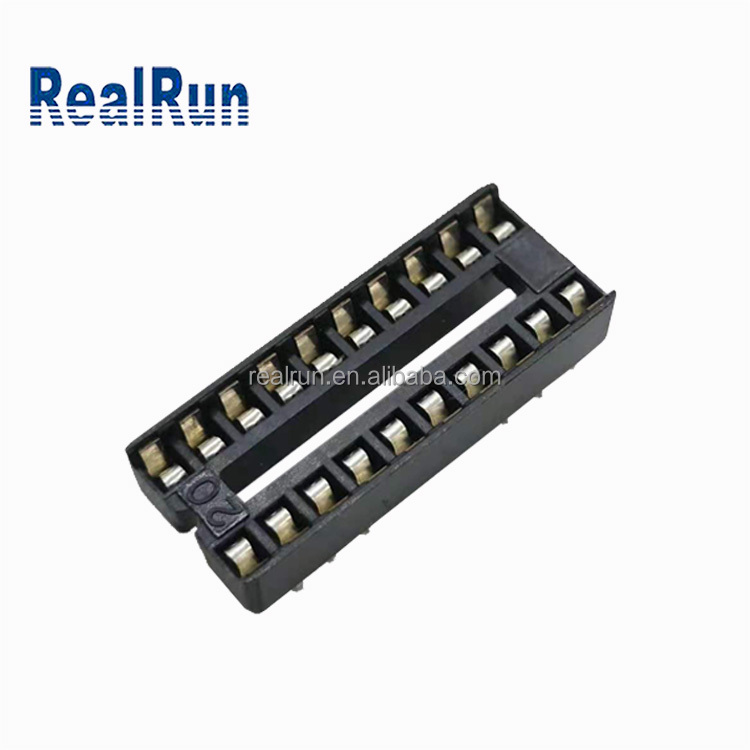

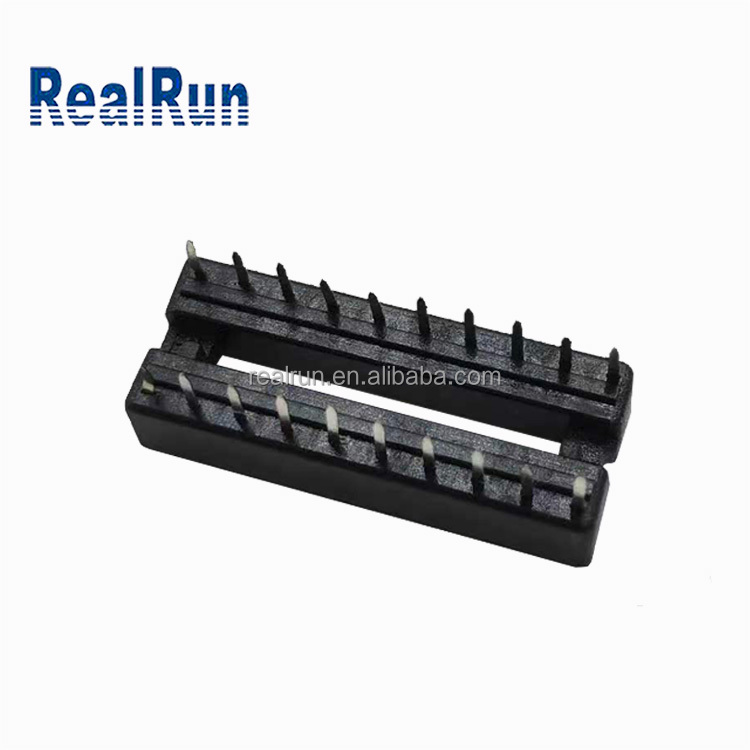

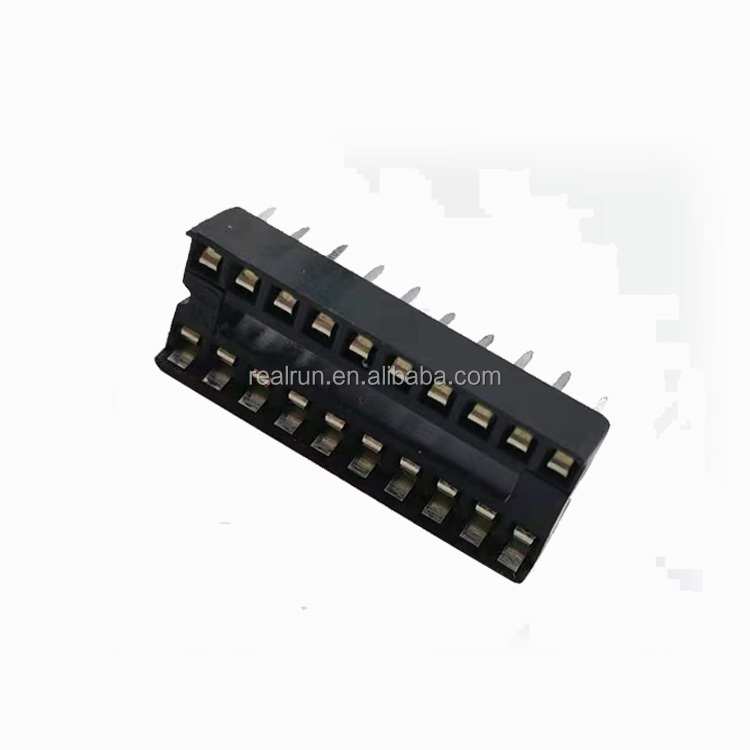

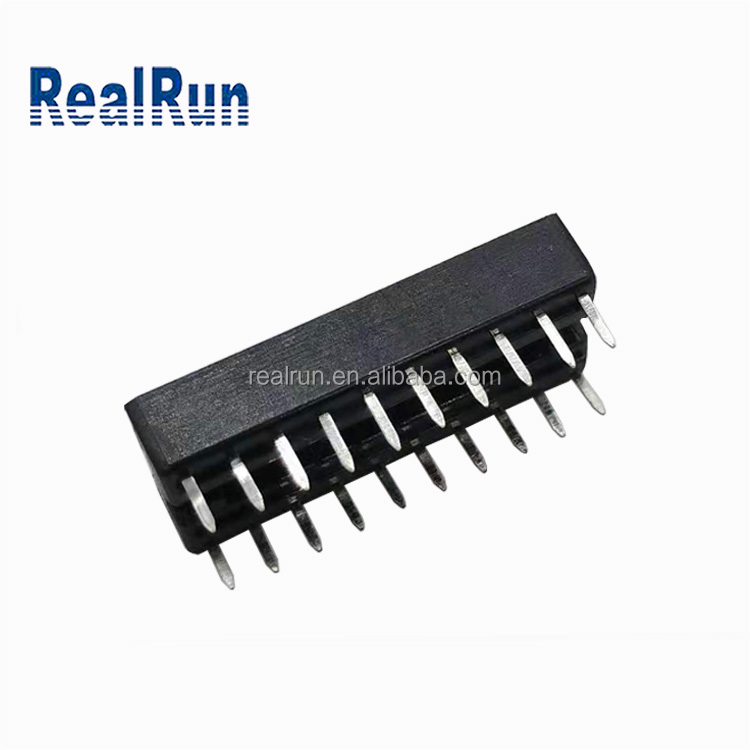

Pitch 2.54 Mm Ic base Socket 20 Pin Connector L7.43
- Model Number:IC2.54-20P
- Type:HEADER
- Place of Origin:Guangdong, China
- Brand:RealRun
- Packaging:reel/tray/tube packing
- Description:Ic socket
- Place of origin:Guangdong, China
- Brand name:RealRun
- Insulator Material:PBT UL94V-0
- Contact Resistance:≤20MΩ
- Insulator Resistance:≥1000MΩ
- Ambient Temperature:-55℃~+105℃
- Solder Temperature and Time:≤235℃,≤3s
- Withstanding Voltage:1000VAC60s
- Fog Test:Rust free for 24 hours
- Temperature of Test Box:(35±2)℃
Connectormanufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

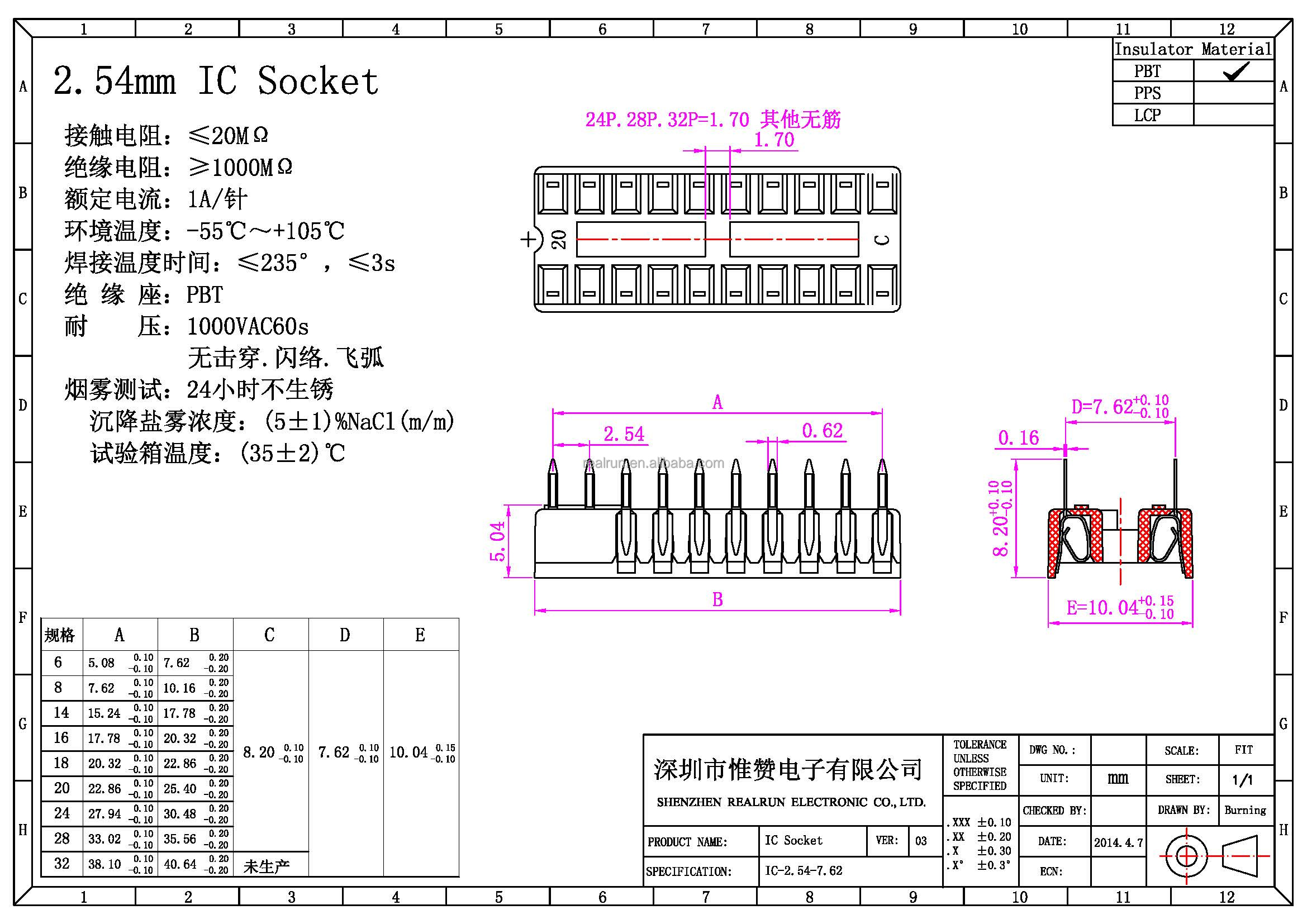

| Name | Ic socket |
| Pin | 20pins |
| Place of origin | Guangdong,China |
| Brand Name | RealRun |
| Pitch | 2.54mm |
| Application | PCB |
| Mouting Type | DIP Type |
| Gender | Female |
| Color | PBT, Black |
| Contact Resistance | ≤20MΩ |
| Insulator Resistance | ≥1000MΩ |
| Ambient Temperature | -55℃~+105℃ |
| Solder Temperature and Time | ≤235℃,≤3s |
| Withstanding Voltage | 1000VAC60s |
| Fog Test | Rust free for 24 hours |
| Temperature of Test Box | (35±2)℃ |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
