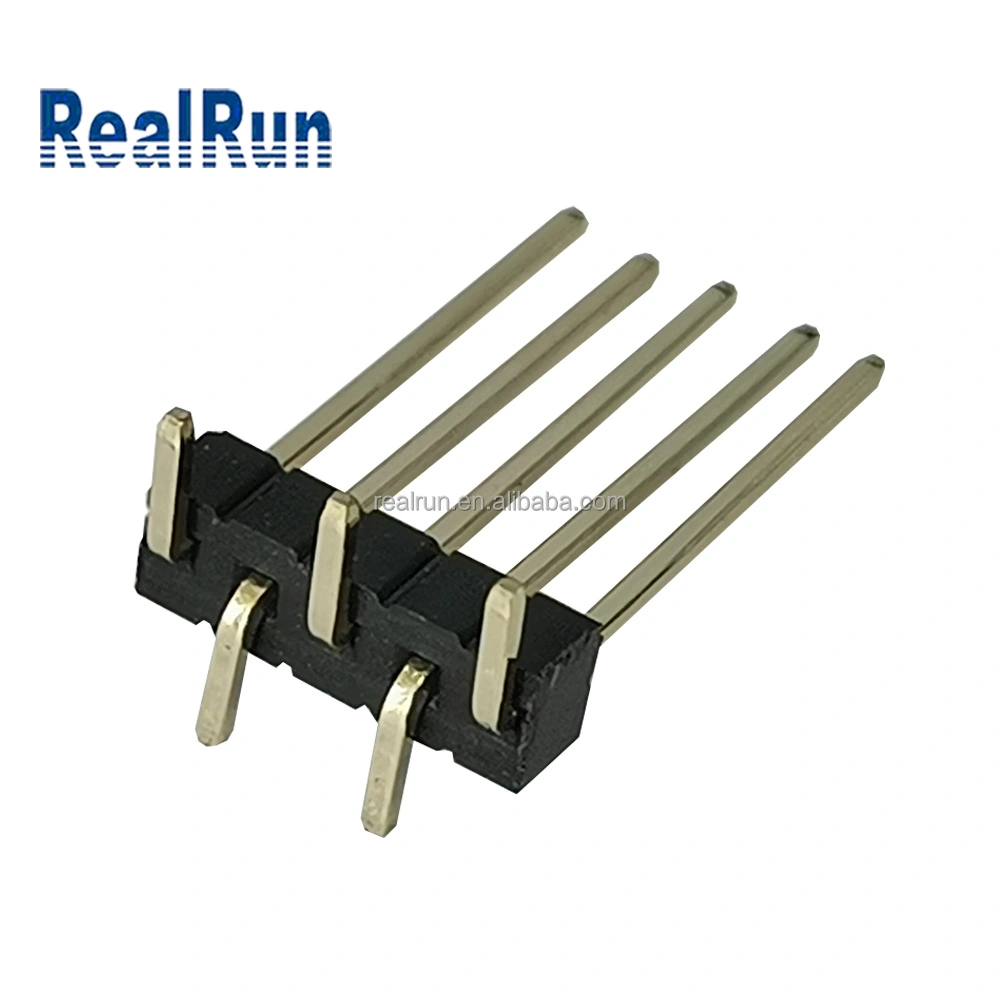

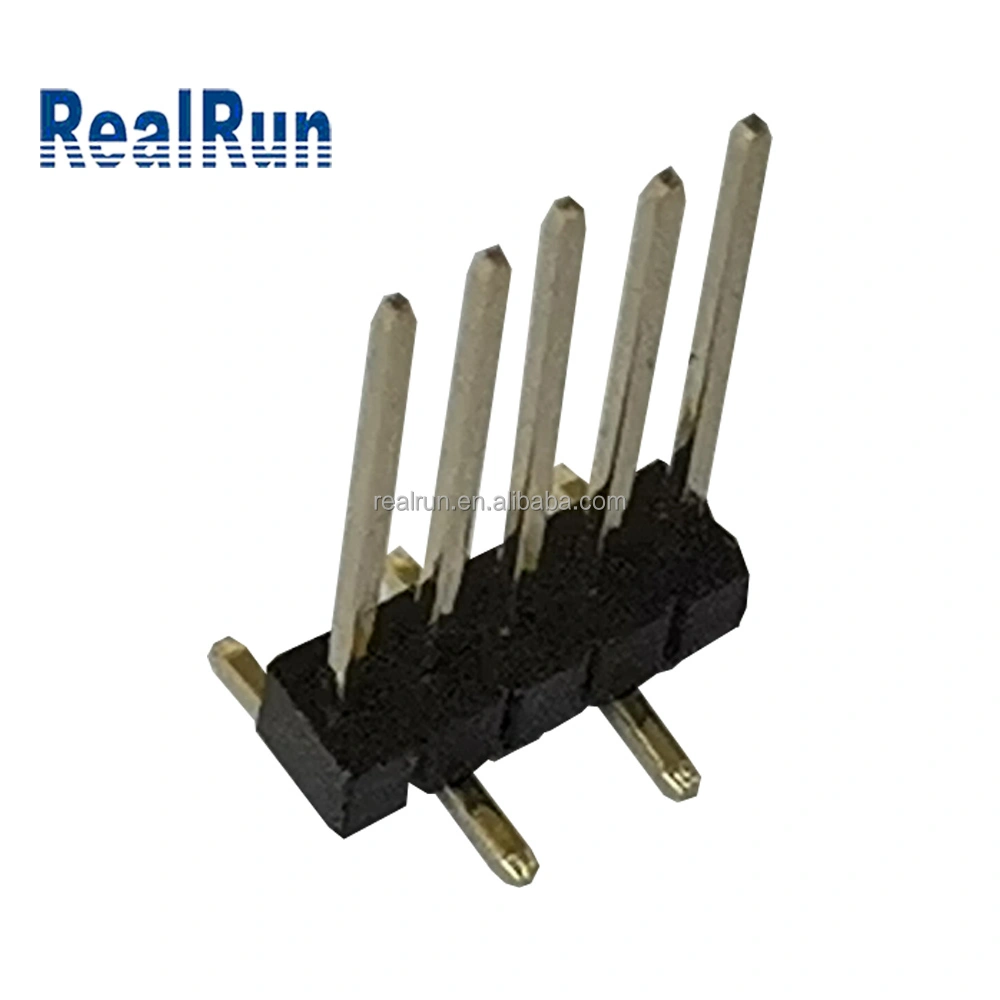

PH1.27 mm Pitch 1x5P 5 Pin PCB Male Socket SMD/SMT Connector
- Model Number:PH1.27*1.5-1*5T
- Type:HEADER
- Place of Origin:Guangdong, China
- Brand:RealRun
- Packaging:Tray/reel/tube Packing
- Description:pin header
- Color:Black
- Pitch:1.27mm
- Current Rating:1AMP
- Insulator:PA6T+30%Glass Fiber, UL94V-0
- Contact Plating:Gold Flash Plated
- Contact:Brass
- Operation Temperature:-40℃ to +105℃
- Insulation Resistance:1000MΩ Min at DC 500V
- Contact Resistance:20mΩ Max
- Withstanding Voltage:500V AC/minute
PH1.27 mm Pitch 1*5P 5 Pin PCB Male Socket SMD/SMT Connector Pin Header
Connectormanufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
| Name | Pin Header connector |
| Pitch | 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm |
| Type | DIP/Angle/SMT Double/Single Row |
| Insulator Color | Black/Gray/Colorized/White |
| Insulator Flammability | PA6T+30%Glass Fiber, UL94V-0 |
| Current Rating | 1Amp |
| Contact Resistance(max) | 20mΩ |
| Operation Temperature | -40℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm |
| Contact | Brass |
| Withstanding Voltage | 500V AC/minute |
| Contact Plating | Gold Flash Plated |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
