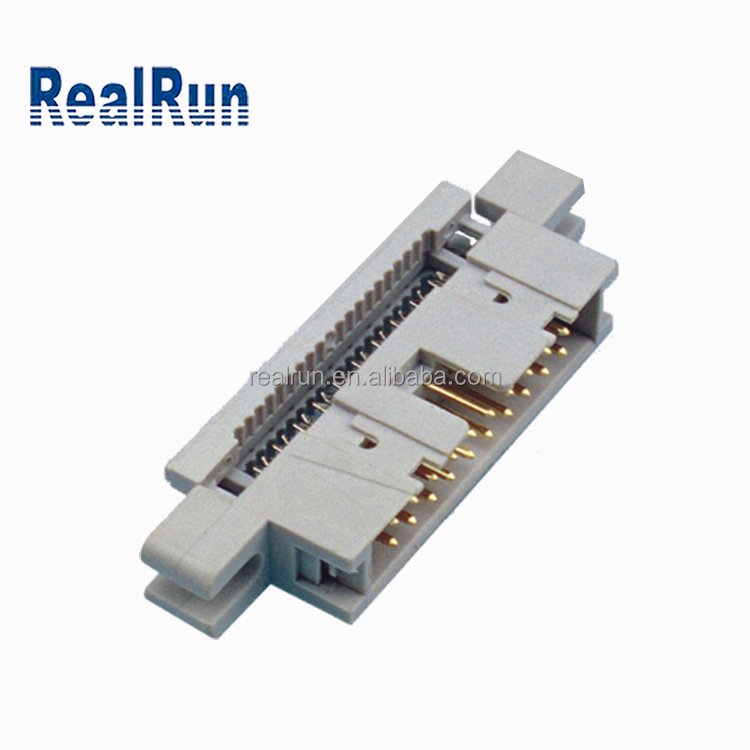

Light Grey 2.54mm Crimp Cable Box Header Idc Type Straight 10P 26P 64P Male Header Connector
- Model Number:IDCBH2.54-2*nP
- Type:HEADER
- Place of Origin:Guangdong, China
- Brand:RealRun
- Packaging:tray/reel/tube packing
- Description:box header
- color:Grey/colored
- Pitch:2.54 mm
- Insulator:PBT+30%Glass Fiber, UL94V-0
- Contact:Brass
- Contact Plating:Gold/Tin over Nickel
- Current Rating:3A
- Contact resistance:20m Ω Max
- Insulation Resistance:1000MΩ Min
- Withstand Voltage:1000V AC/DC
- Operation Temperature:-40℃ to +105℃
| Name | Ejector/Shroud header connector |
| Pitch | 1.27mm/2.0mm/2.54mm |
| Insulator Color | Grey/colored |
| Contact Material | Brass |
| Insulator | PBT+30%Glass Fiber, UL94V-0 |
| Contact Plating | Gold/Tin Over Nickel |
| Current Rating | 3A |
| Contact resistance | 20mΩ Max |
| Insulation Resistance | 1000MΩ Min |
| Withstand Voltage | 1000V AC/DC |
| Operation Temperature | -40℃ to +105℃ |
| Max.Processing Temp | 180℃ for 30-60 seconds(200℃ for 10 seconds) |
| Insulator material | PBT LCP PL6T PL9T |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |


Product Overviews

Packaging & Shipping


Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. RealRun always regards quality as corporatelife,adheres to the business philosophyofthe quality to the market, the management to benefitand the leading innovation and brand strategy. Since the company established,wehavepayed attention to the managementspecification and high quality requirements, now havepassed ISO9001 quality management system certification, all products are according with the UR RoHS and REACH the environmental protection requirements. We always adhere to the"market-oriented, customer satisfaction"as the tenet, and constantly strive to beoutstanding enterprise.

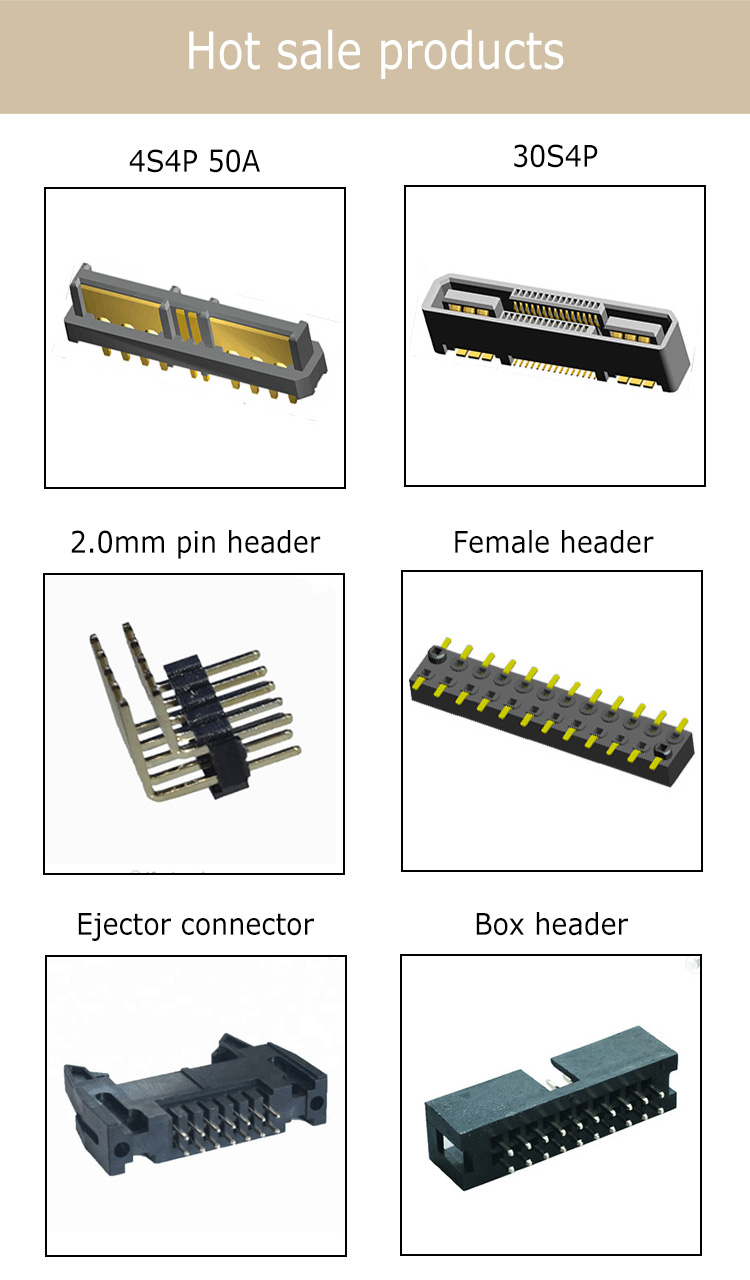

The company is located in ShenzhenGuangming new district,witha floorage of 1500sq.m. for plant and 100employees, main products: Pin header,Female header,Box header,Ejector header, IDC series, ICsocket, single and double row round holesocket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
The company has a skilled R&D and management team, and first-class level of advanced production equipment and precision testing instruments. The domesticmarketis main in south China, radiation throughout the country, the international market ismaininHong Kong, Taiwan and the global clients.
Products are mainly used in:instrumentation, communication, security, medical equipment, computer motherboards, program-controlled switch, digital camera, LED photoelectricity,etc.
The face of strong demand customization, our strong R&D center, mold manufacturer and processing center, which can quickly grasp customer needs, providing OEM/ODM products with the most reliable product and precise connectors for different customers.







1.Can I get some samples?
A: Yes,some samples are free.
2. why we choose RealRun for our supplier?
A: 1. RealRun has more than 10 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
3. If happend with the defective products when receiving the goods, how to deal with?
A:1.Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2.First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3.Second: discuss the solutions.
4.Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
4. which payment can be accepted:
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
