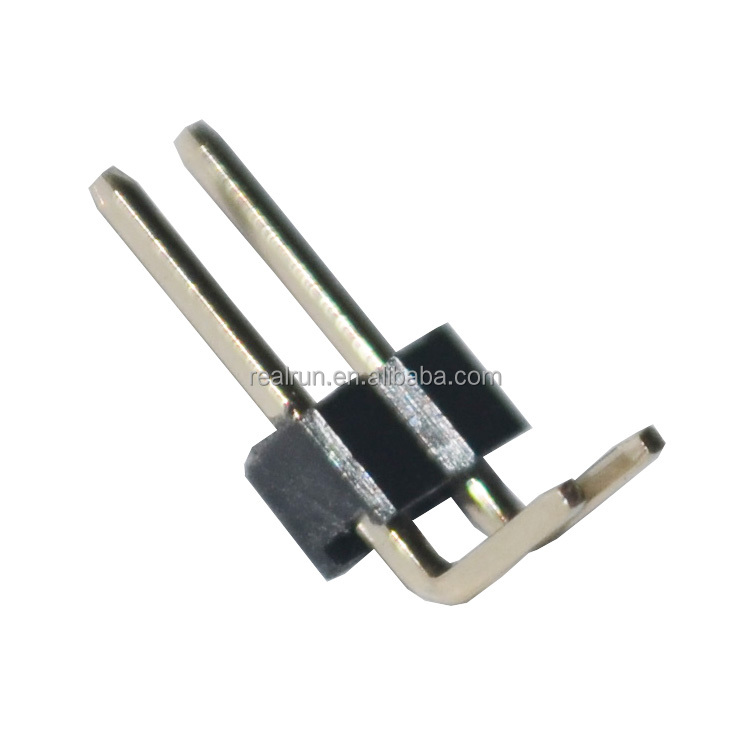

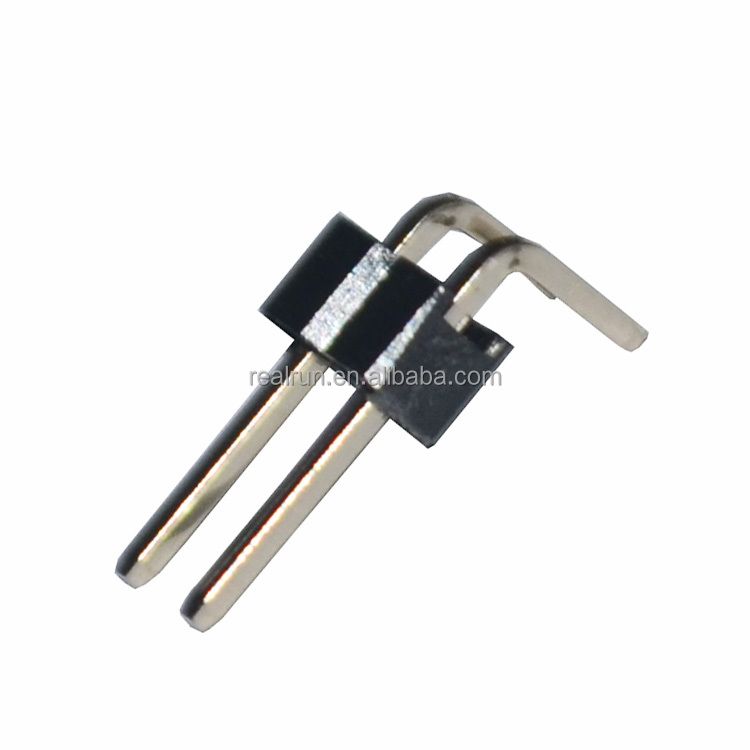

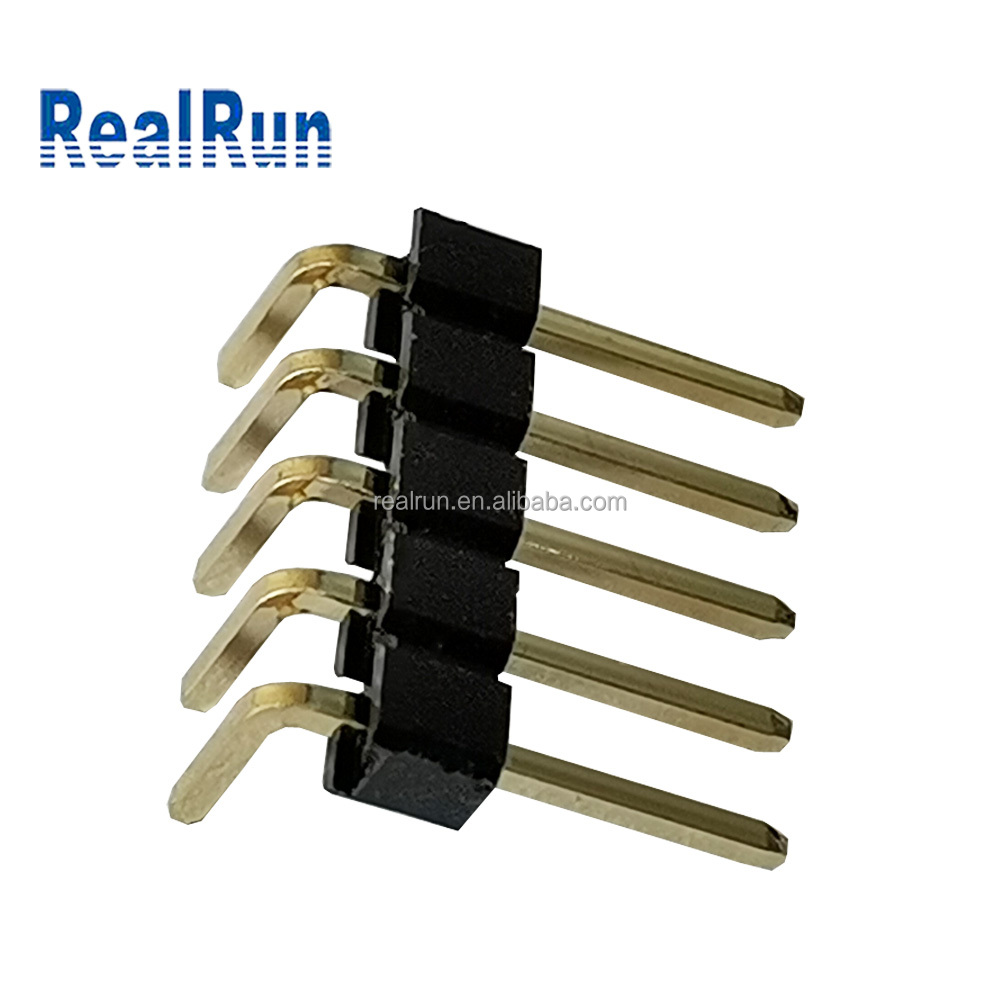

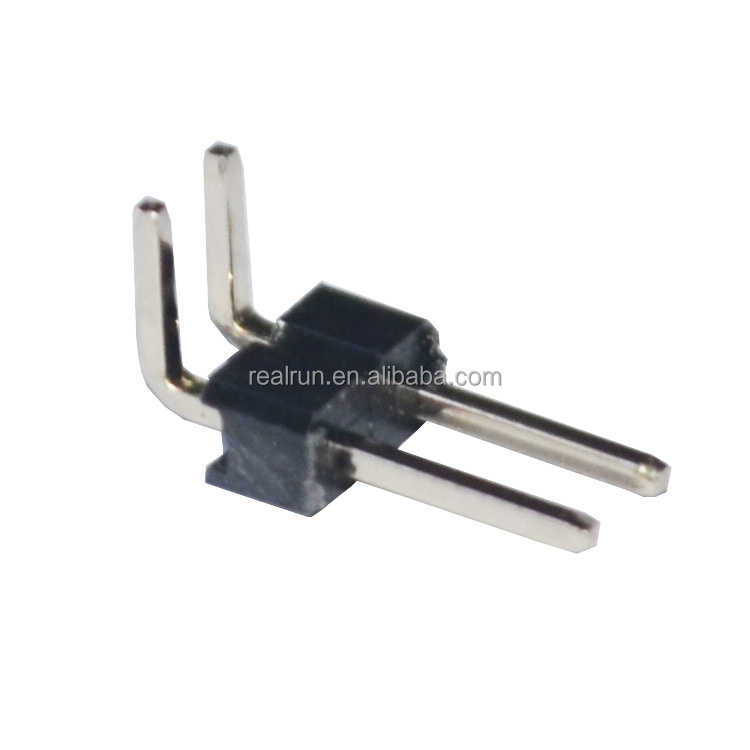

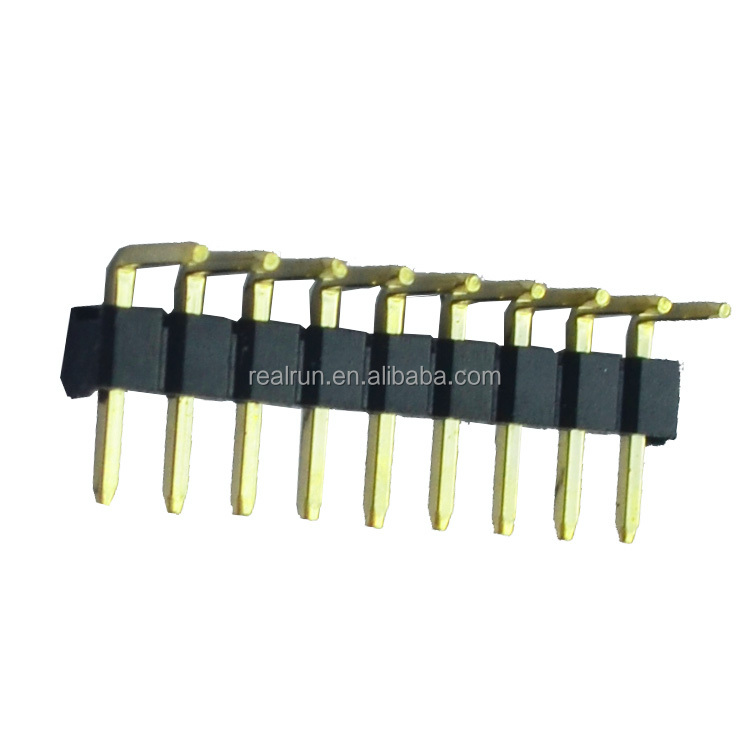

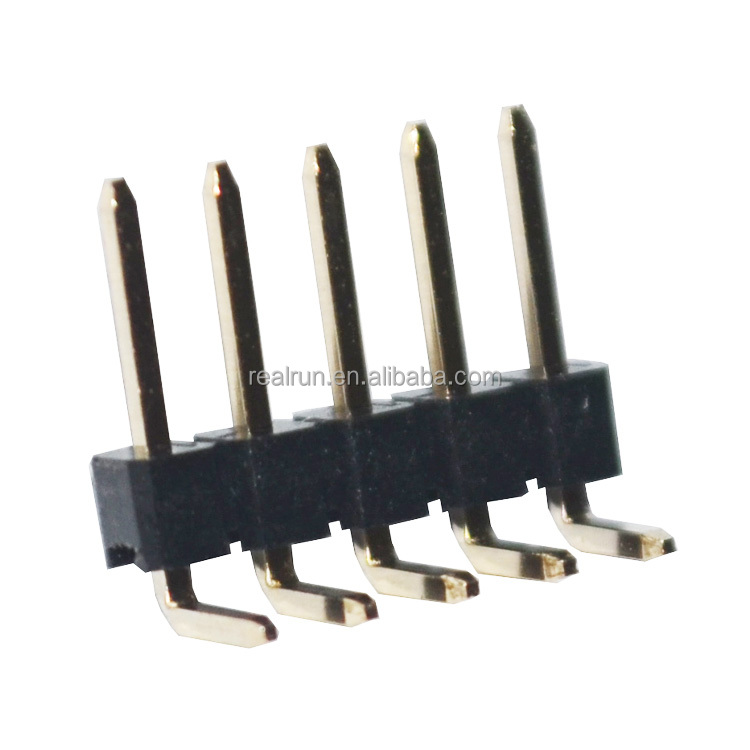

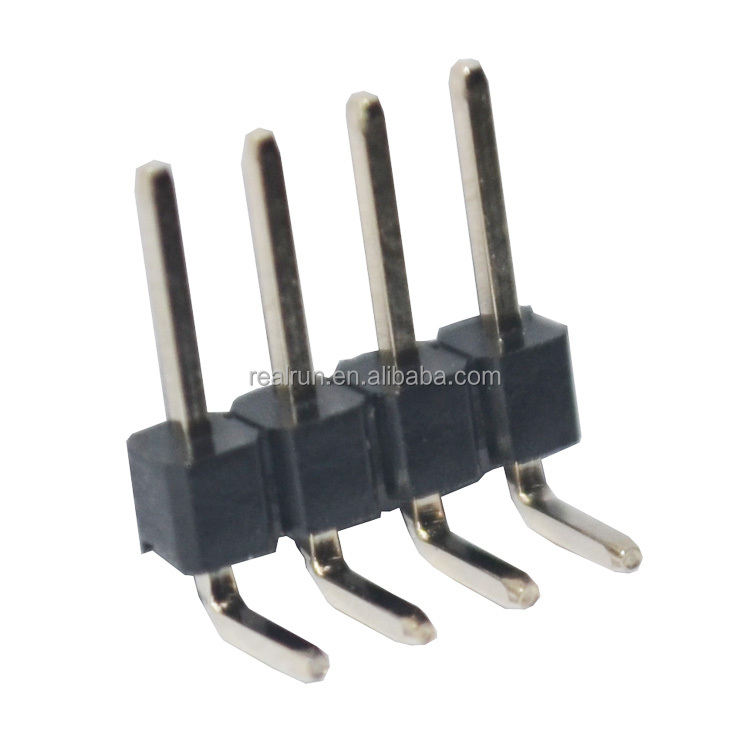

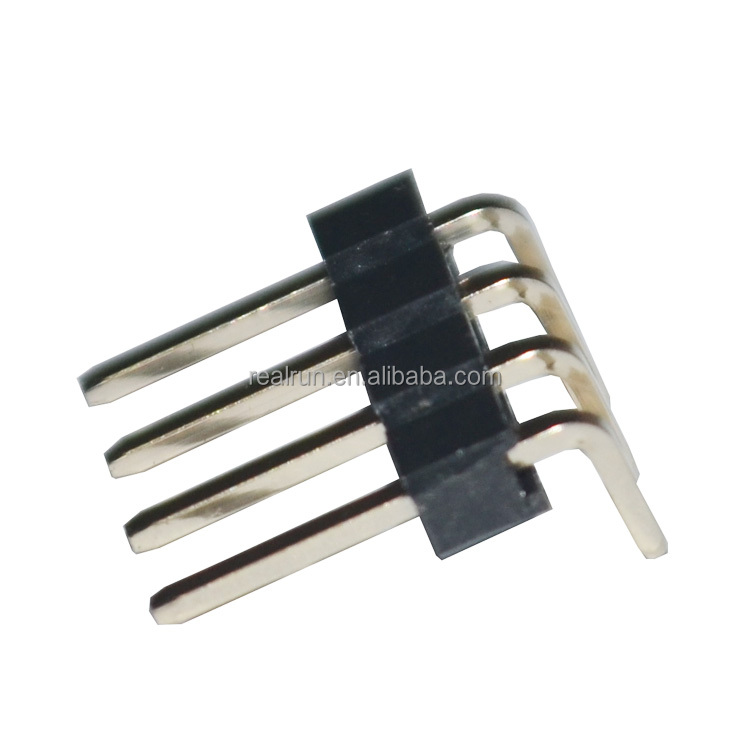

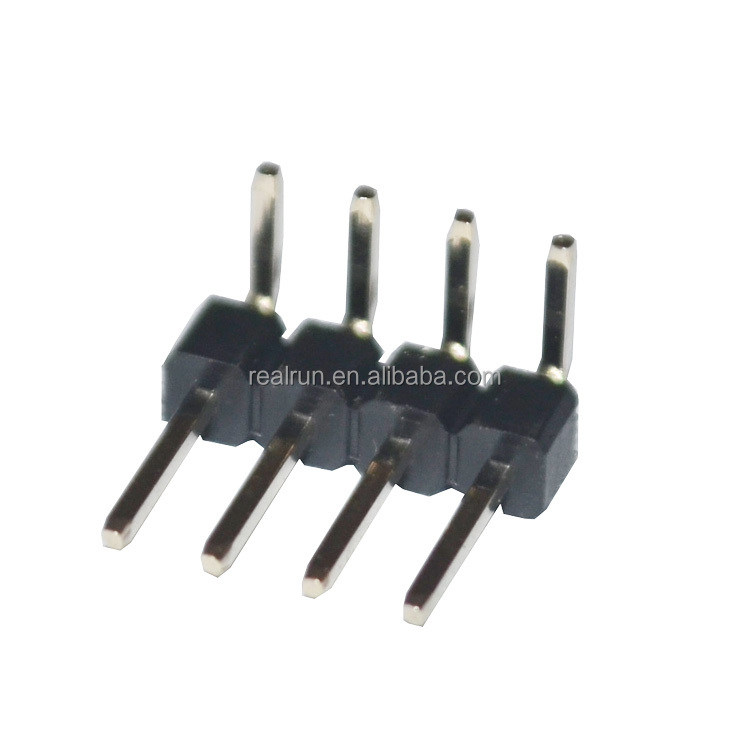

1 To 40 Pin 2.54 Mm Pitch Reflow Soldering Right Angle Copper Pin Header Connector For PCB Board
- Model Number:PH2.54*2.5-1*nW 2W
- Type:HEADER
- Place of Origin:Guangdong, China
- Brand:RealRun
- Packaging:Tray/reel/tube Packing
- Description:pin header
- Color:Black
- Pitch:2.54mm
- Current Rating:3A
- Insulator:PA6T+30%Glass Fiber, UL94V-0
- Contact Plating:Gold/Tin over Nickel
- Contact:Brass
- Operation Temperature:-40℃ to +105℃
- Insulation Resistance:1000MΩ Min
- Contact Resistance:30mΩ Max at DC 3A
- Processing Temperature:260℃ for 10 seconds
1 To 40 Pin 2.54 Mm Pitch Reflow Soldering Right Angle Copper Pin Header Connector For PCB Board

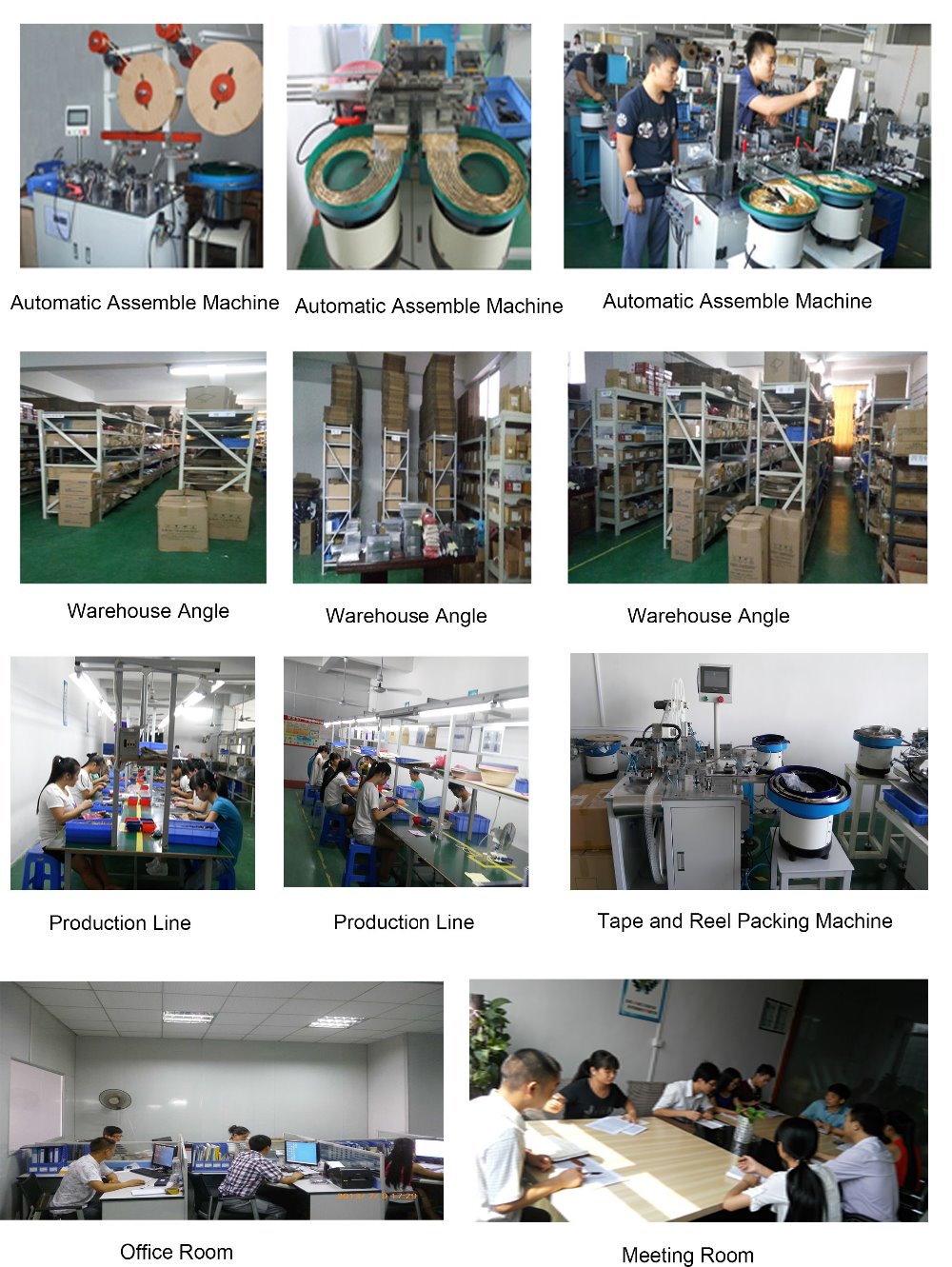

Connectormanufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

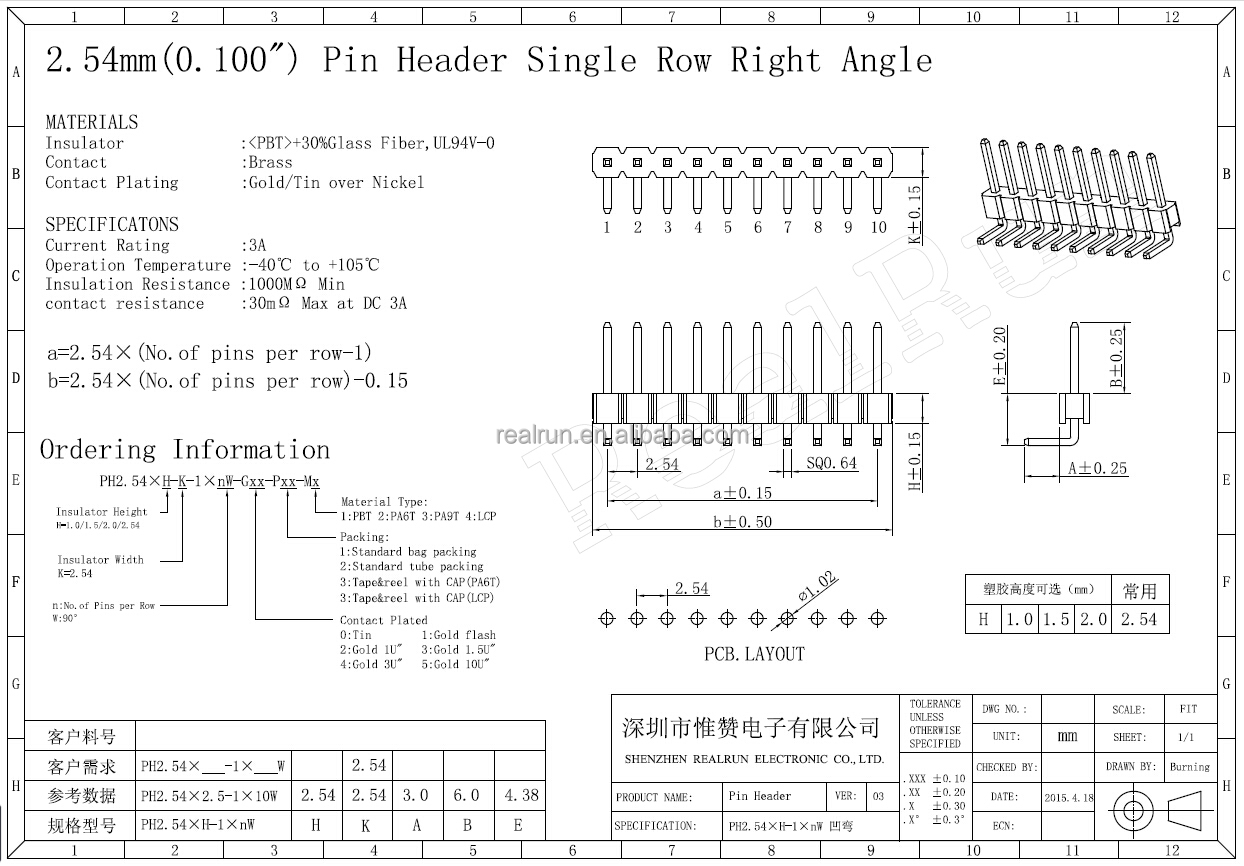

| Name | Pin Header connector |
| Pitch | 0.8mm/1.0mm/1.27mm/2.0mm/2.54mm/3.96mm/5.08mm |
| Type | DIP/Angle/SMT Double/Single Row |
| Insulator Color | Black/Gray/Colorized/White |
| Insulator Flammability | PBT+30%G.F UL94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30mΩ |
| Operation Temperature | -40℃ to +105℃ |
| Insulation Resistance(min) | 1000M ohm |
| Contact materials | Brass |
| Contact Plating | Gold/Tin over Nickel |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Related Products
1.Can I get some samples?
A: Yes,some samples are free.
2. why we choose RealRun for our supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
3. If happend with the defective products when receiving the goods, how to deal with?
A:1.Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all
theresponsibility.
2.First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3.Second: discuss the solutions.
4.Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
4. which payment can be accepted:
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 70%T/T advance before shipping.
5.What shipping methods are supported?
A: By Sea, Air, Land, or use your express account. like FedEx, DHL, UPS etc...
